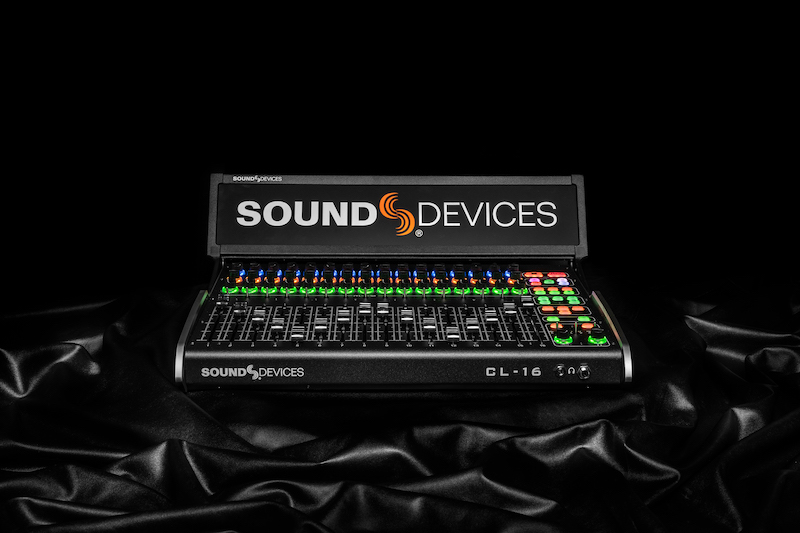

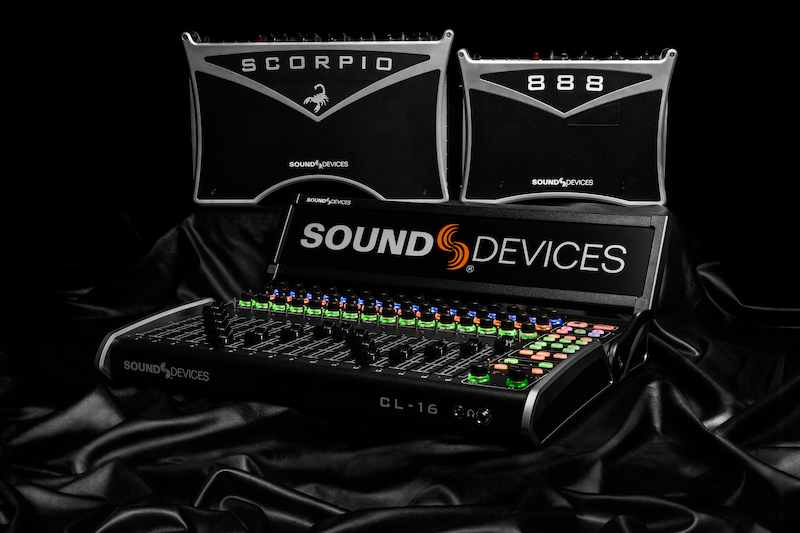

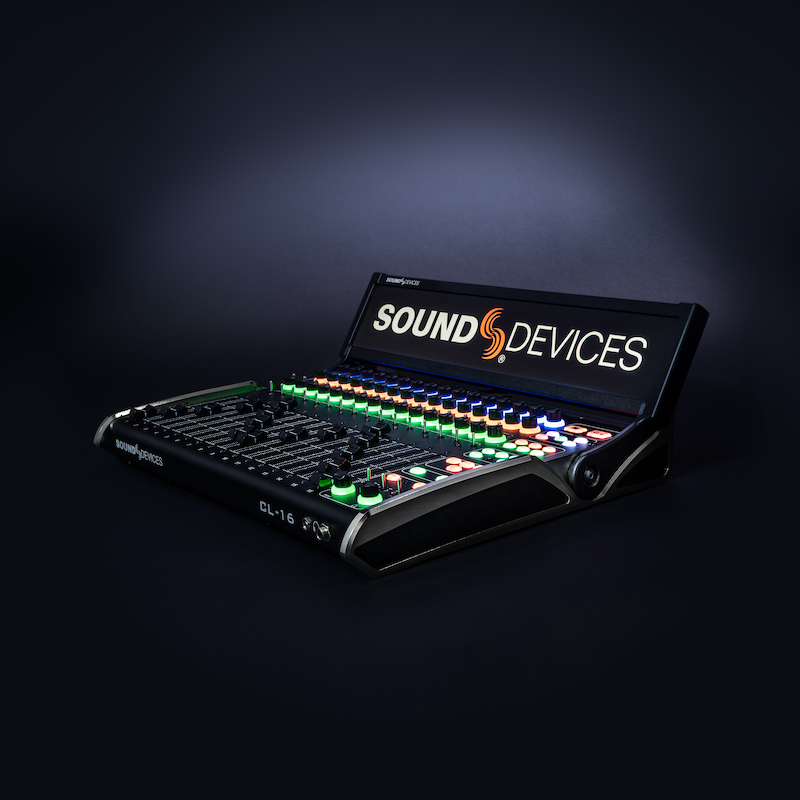

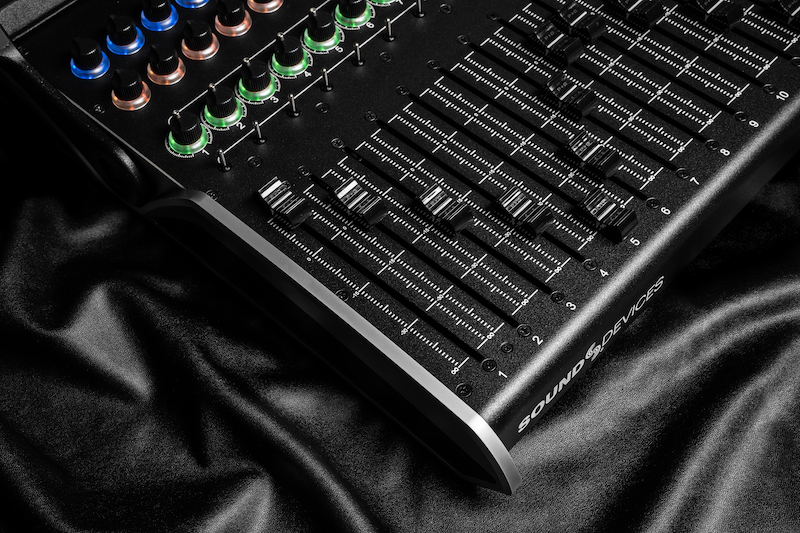

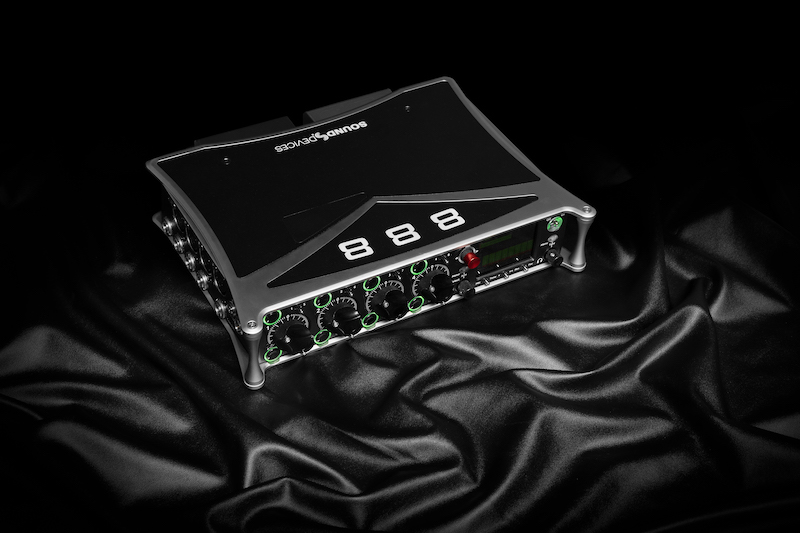

The CL-16 Linear Fader Control Surface for 8-Series combines the simplicity of traditional analog consoles with the power and flexibility of digital consoles. This bespoke control surface enhances the experience of cart-based mixing with its intuitive operation, 16 silky-smooth faders, 16 dedicated trims and a glorious panoramic LCD. All of this is elegantly engineered into a 16.3 inch / 41.4cm wide compact unit which fits in a cart and operates from 12 V DC. FEATURES: compatible with the 888 and Scorpio, with support for the 833 in a later firmware update 16 dedicated rotary trim controls 16 dedicated faders intuitive design philosophy where channels 1-16 have dedicated, non-banking controls like a traditional analog console and other important features may be quickly accessed 32 multi-function rotary controls for EQ, pan, channels 17-32 gains, bus gains, output gains and more large, sunlight-readable LCD screen folds down for easy and safe storage and transport high-reliability, silent, soft-touch buttons for key functions like record, stop, metadata, coms, returns and more five user-assignable buttons built-in 5-port USB hub with (two USB-C and three USB-A) for keyboards, SD-Remote tablet and other USB peripherals 6.35mm and 3.5mm headphone jacks remote 10-pin connector for custom wiring of LEDs and switches, along with 6.35mm foot pedal input connects via USB-B 12V DC-powered via 4-pin XLR (not included) 16 ultra-smooth gliding Penny & Giles 100 mm linear faders best feeling faders on the market quick bottom panel access for field servicing of faders ships with USB-A to -B cable, 6.35mm to 6.35mm TRS cable and 10-pin Phoenix screw terminal block CL-16 Specifications VOLTAGE 10-18 V DC at XLR-4. Pin 4 = , pin 1 = ground. CURRENT DRAW (MIN) 560 mA quiescent at 12 V DC in, all USB ports left open CURRENT DRAW (MID) 2.93 A, USB ports total load 5 A CURRENT DRAW (MAX) 5.51 A, USB ports total load 10 A USB-A PORTS 5 V, 1.5 A each USB-C PORTS 5 V, 3 A each REMOTE PORTS, POWER 5 V, 1 A available on pin 10 REMOTE PORTS, INPUT 60k ohm typical input Z. Vih = 3.5 V min, Vil = 1.5 V max REMOTE PORTS, OUTPUT 100 ohm output Z when configured as output FOOT SWITCH 1k ohm typical input Z. Connect to ground to operate (active low). WEIGHT: 4.71 kg (10lbs 6oz) DIMENSIONS: (H X W X D) SCREEN FOLDED DOWN 8.01 cm X 43.52 cm X 32.913 cm (3.15 in. X 17.13 in. X 12.96 in.) SCREEN FOLDED UP 14.64 cm X 43.52 cm X 35.90 cm (5.76 in. X 17.13 in. X 14.13 in.)
