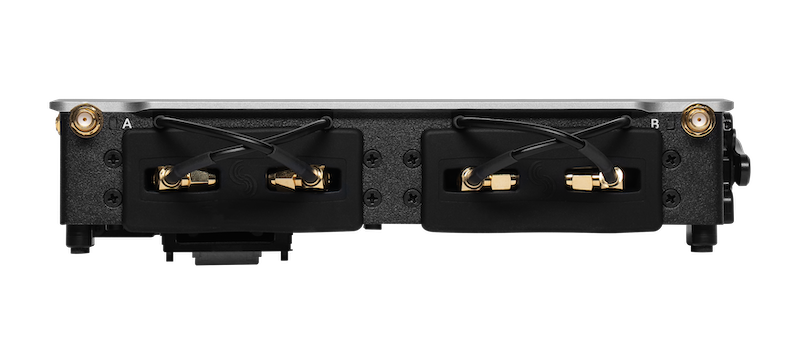

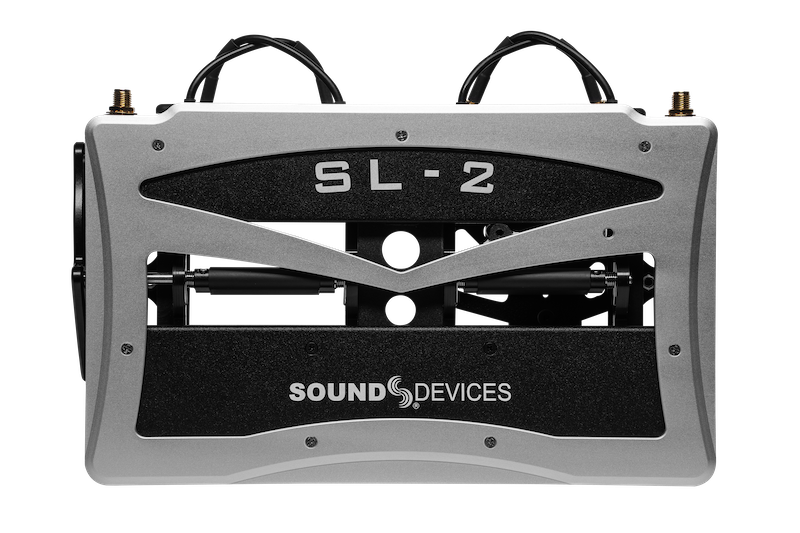

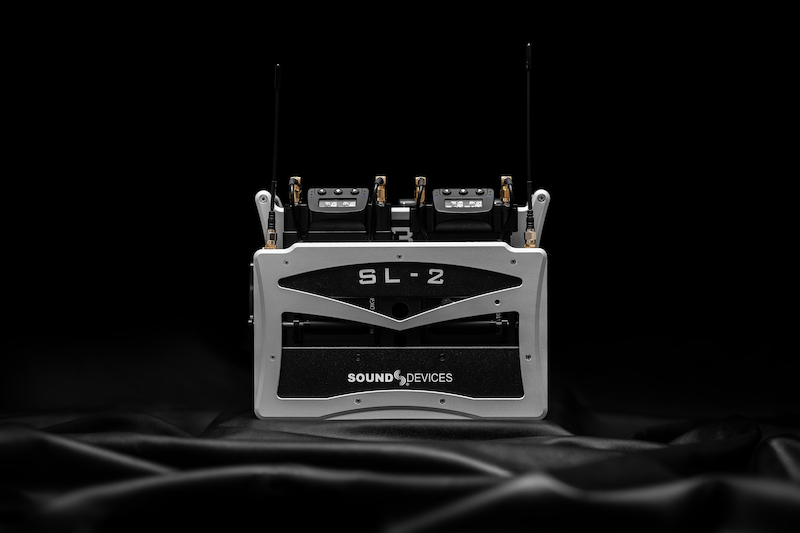

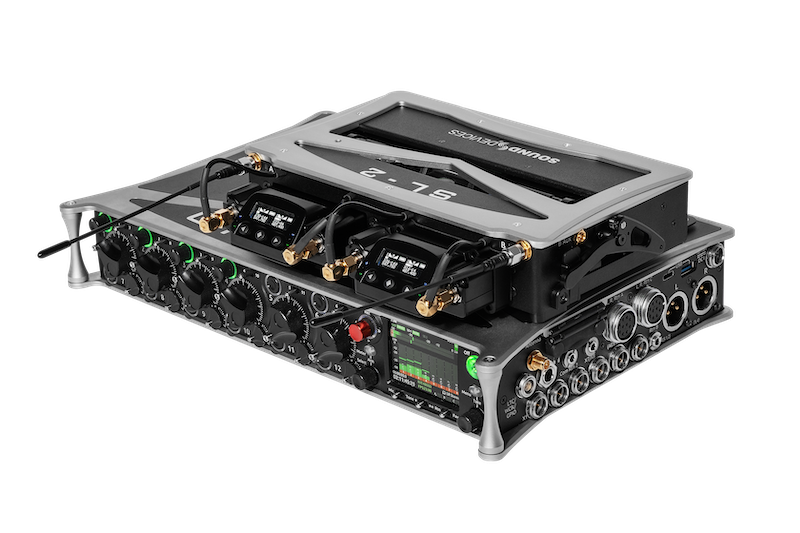

Streamline your bag with the SL-2 Dual SuperSlot Wireless Module. This two slot-in wireless receiver integration system easily mounts to the top panel of any 8-Series mixer-recorder. UniSlot and SuperSlot wireless receivers from a variety of manufacturers are accepted, including Audio Ltd, Lectrosonics, Wisycom and Sennheiser. The SuperSlot protocol supports up to four channels of wireless audio per slot. An 8-Series mixer-recorder supplies power to the SL-2 and slotted-in receivers, no external DC connector needed. Analog or digital audio is sent from the receivers into the mixer-recorder via the expansion port, reducing messy cabling for power and audio connectivity. The SL-2 offers antenna distribution to the slot-in receivers, spreading out the placement of antennas for better RF performance. The rear panel of the SL-2 is equipped with two TA3 connectors for an additional four inputs of AES3 audio and two 4-pin Hirose DC outputs, each supplying up to 500 mA for powering additional equipment. FEATURES: compatible with the 833, 888 and the Scorpio accepts two UniSlot or SuperSlot wireless receivers from Audio Ltd, Lectrosonics, Sennheiser and Wisycom built-in antenna distribution with antenna powering for active antennas or boosters supports remote control of third party smart antennas two auxiliary MCX antenna ports for connecting other receivers or RF distribution two TA3 AES3 inputs for an additional 4 channels of digital audio two DC Outputs via Hirose 4-pin connectors, each supplying up to 500 mA powers via an 8-Series mixer-recorder accepts either analog or digital audio from slot-in receivers ability to set and monitor multiple functions of a SuperSlot-compatible receiver from the 8-Series mixer-recorder RF scan with visual representation of the RF spectrum monitor transmitter battery, receiver audio and RF levels rugged, lightweight, and compact design mounts to the top of any 8-Series mixer-recorder same width as the 833 SL-2 Specs Powering All power supplied by host 8-series machine SL-2 idle power draw 1.3 W (without receivers or antenna) Antenna Impedance 50 ohms Antenna Powering 12V at 200 mA, menu selectable on/off Serial remote control, Wisycom-compatible for ADFA and LFA powered antenna etc. Antenna Pre-select Filters Menu selectable: Wideband/bypass (low pass filter, 1.7 GHz upper cut-off) 470-614 MHz 542-694 MHz 606-770 MHz 770-960 MHz Input RF Attenuators 0 to -1 8dB, in 6 dB steps, menu selectable RF Outputs Auxiliary Antenna Outputs for additional receiver DC Outputs 1-2 500 mA max (each), 6-18 VDC passed through from host 8-series machine, depending on power source. Hirose 4-pin connector: pin 4 = , pin 1 = ground. AES Inputs Two pairs for a total of four channels, AES-3 balanced, 110 ohms, TA-3 connectors Dimensions H x W x D 4.5 cm x 21.3 cm x 13.1 cm; (1.8 in x 8.4 in 5.1 in) Weight 1.35 lbs (unpackaged) 0.61 kg (unpackaged)
