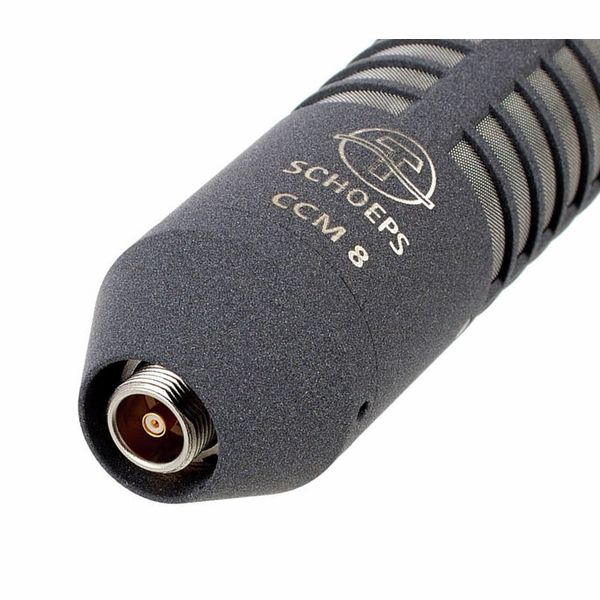

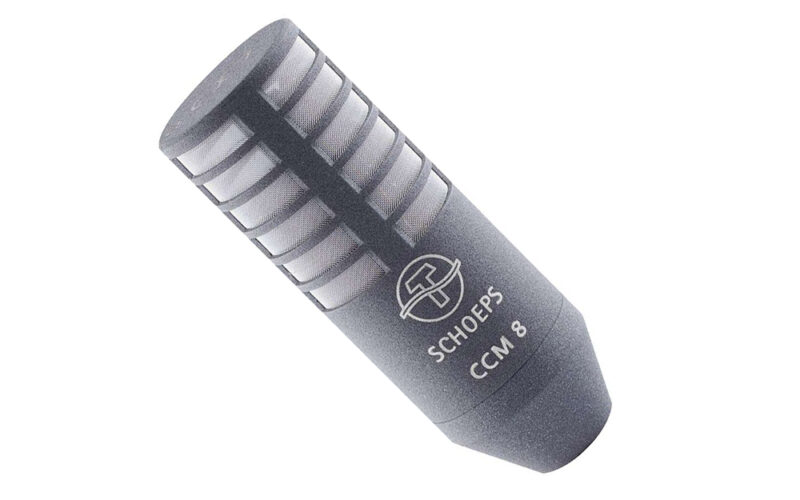

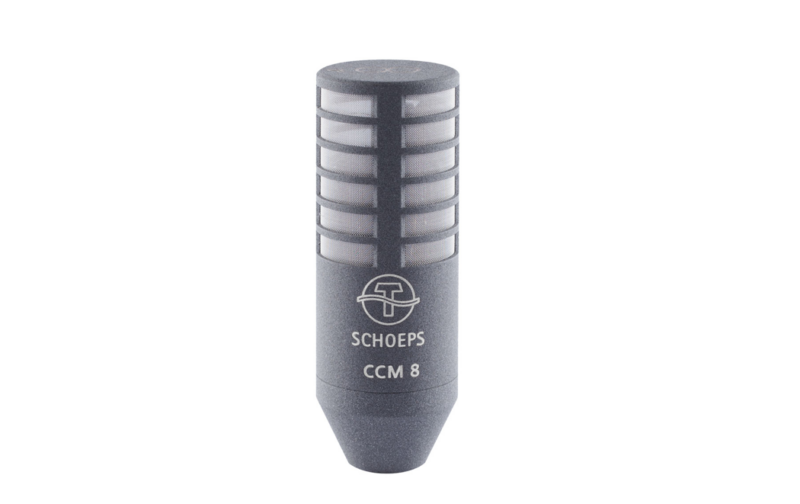

The Schoeps CCM 8 Compact Microphone capsule type is a true dipole (bidirectional) transducer, operating with a single diaphragm. Its main axis is at a right angle to the capsule, and is marked at 0° and 180° with a red and a black dot respectively. The inherent qualities of a pure pressure-gradient transducer are readily observed in this capsule type: Its sensitivity decreases at low frequencies. The directional characteristic is extraordinarily independent of frequency. Proximity effect is present. Pure pressure-gradient transducer Figure-8 pattern with near-ideal consistency across the frequency range Side-addressed (pickup perpendicular to the microphone body) Optimal for use in MS, Double MS and Blumlein stereo recording The directivity index of a figure-8 pattern is the same as that of a cardioid; if microphones with these two patterns are placed at the same distance from a sound source, a quantitatively similar balance of direct and reverberant sound would be picked up. In practice such a comparison would be deceptive, however, since a figure-8 does not respond to sound coming from the sides, from above or from beneath its main axis as does a cardioid. The figure-8 has a rear lobe equal in sensitivity to its front lobe, and this exactly makes up the quantitative difference – but in normally reverberant settings, the sound reaching a figure-8’s rear lobe will be delayed and dispersed to a considerably greater extent than the reverberant sound energy which a cardioid picks up from its front and sides; the reflected sound will typically be subject to far more high frequency absorption as well. Thus the reverberant sound energy picked up by a figure-8, though theoretically equal in amount, is quite different in character from that which would be picked up by a cardioid in the same position. The sound quality of the CCM/MK 8 is clear and neutral.
