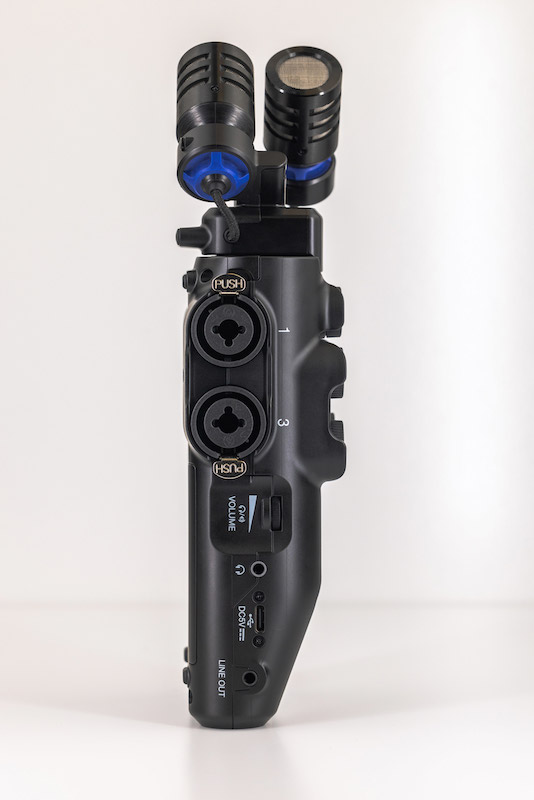

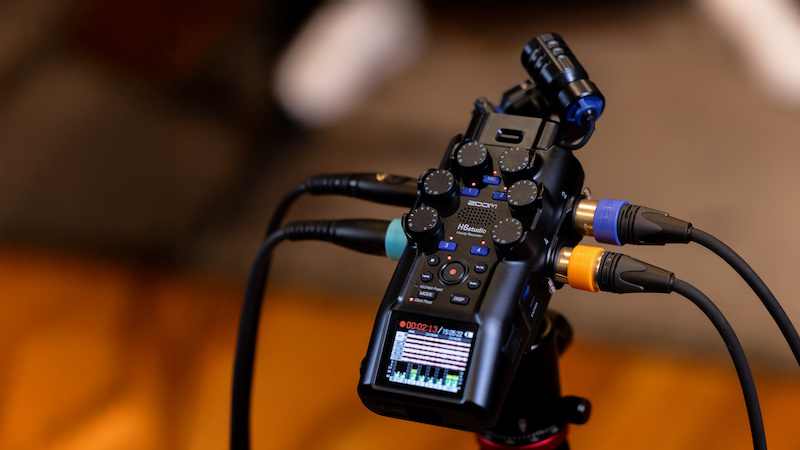

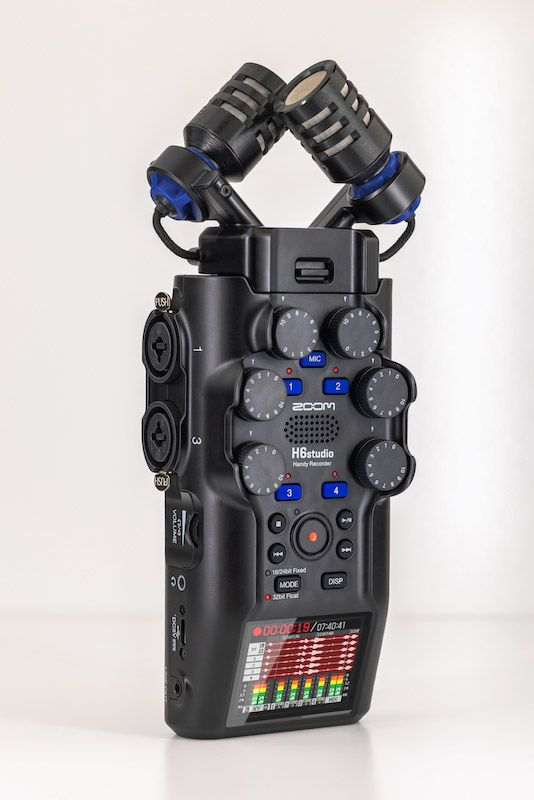

The H6studio features large-diaphragm XY microphones, four studio-grade preamps, and 32-bit float recording with dedicated gain knobs. Built with F-Series technology, it’s the most advanced Handy Recorder to date. FEATURES: 32-bit float and 16/24-bit formats each have their Advantages 32-bit float prevents clipping but requires post-production 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping The H6studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production And with the dedicated format switch, you can adapt your workflow quickly The H6studio supports sampling rates from 44.1 to 192 kHz Capture up to 8 tracks* at once – 6 individual tracks plus a stereo mix Up to 8 tracks (6 inputs 2 stereo mixes) at 96kHZ Up to 6 tracks (6 inputs) at 192kHZ The 19.4mm microphones capture audio with incredible frequency Response and 140 dB max SPL Their increased size captures recordings with unmatched depth and clarity The H6STUDIO features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN) With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range The H6studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track HEADPHONE OUT Use the loud 20mW headphone output to monitor or listen back to your recordings in any environment. LINE OUT Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video. ONBOARD SPEAKER The built-in speaker has a maximum output of 250mW for previewing recordings on the spot. 6 TRACKS PLUS A STEREO MIX Record with sample rates from 44.1 to 192 kHz. The H6studio can capture up to 8 tracks* at once – 6 individual tracks plus a stereo mix. *Stereo mix is only available at 96kHZ THE NOISE STOPS HERE Carefully designed RF shielding blocks interference from smartphones and Wi-Fi, while the shock-mounted mics help reduce handling noise. LIMITERS THAT LOOK AHEAD The H6studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track. FOUR XLT/TRS INPUTS STEREO MINI JACK The H6studio includes four locking XLR/TRS inputs with 48V phantom power and 4dBu line-level support. It also has a stereo mini jack with plug-in power. NEXT GENERATION CAPSULE SYSTEM The H6studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording. Use the included mic connector cover when no capsules are needed. *Compatible with SSH-6e, EXH-6e, WLM-1, XYH-6e WIRELESS CAPSULE The WLM-1* is a dual-channel wireless system that comes with two transmitters and a receiver. The transmitter’s built-in microphone captures clear, balanced audio at volumes up to 130 dB SPL. SEE YOUR SOUND IN REAL TIME See your levels and waveforms at the same time. Tap the DISP key to switch between level meter only or waveform view. Inputs and Output Channels Inputs Mic Capsule 1 MIC/LINE (mono) 4 Outputs LINE OUT 1 Headphone 1 Built-in speaker (mono) 1 Inputs XY mic (XYH-5s) 90° XY stereo format Pickup pattern Unidirectional Sensitivity –41 dB/Pa at 1 kHz Maximum sound pressureinput 140 dB SPL MIC/LINE (XYH-5s) Connector 1 stereo mini jack Input gain −∞ – 60 dB Input impedance 2 kΩ or more MIC/LINE (mono) Connectors 4 XLR/TRS combo jacks (XLR: 2 HOT,TRS: TIP HOT) Input gain −∞ – 60 dB Input impedance MIC: 3 kΩ or moreLINE: 3 kΩ or more Maximum input level MIC: 4 dBuLINE: 24 dBu Phantom power 48 V Equivalent input noise –127 dBu or less (IHF-A) at 150Ω input Outputs LINE OUT Connector 1 stereo mini jack Maximum output level 1 dBu Output impedance 110 Ω or less Headphone Connector 1 stereo mini jack Maximum output level 20 mW 20 mW (when 32 Ω load) Output impedance 10 Ω or less Built-in speaker Type 20 mm × 30 mm elliptical dynamicspeaker Effective maximum output 250 mW Recorder Maximum simultaneousrecording tracks 8 Maximum simultaneousplayback tracks 6 Recording formats WAV44.1/48/96/192 kHz16-bit/24-bit/32-bit floatmono/stereoBWF and iXML formats supported Recording media microSDHC memory cardsmicroSDXC memory cards Display 2.00″ full-color LCD (320 × 240) USB Connector USB Type-C*use a USB cable that supports data transfer. USB bus power is supported Audio interface USB 2.0 High Speed Input and output channel 6 in / 2 out (multi)2 in / 2 out (Stereo) Sampling frequencies 44.1/48/96 kHz (audio interface only)44.1/48 kHz (audio interface onboard recording) Bit depths 24-bit, 32-bit float File transfer USB 2.0 High Speed Power 4 AA batteries (alkaline, lithium or rechargeable NiMH batteries)AC adapter (ZOOM AD-17): DC 5V/1A• USB bus power is supported.
