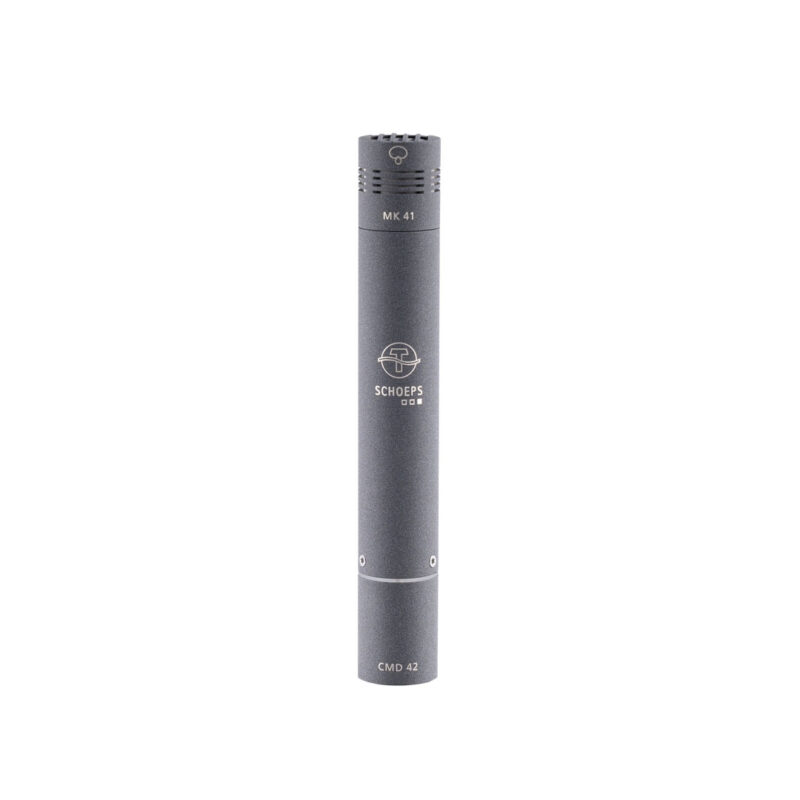

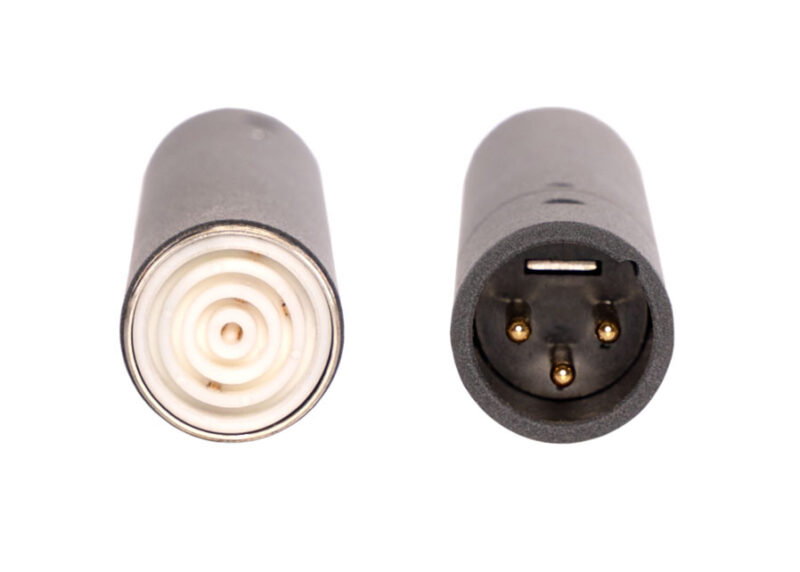

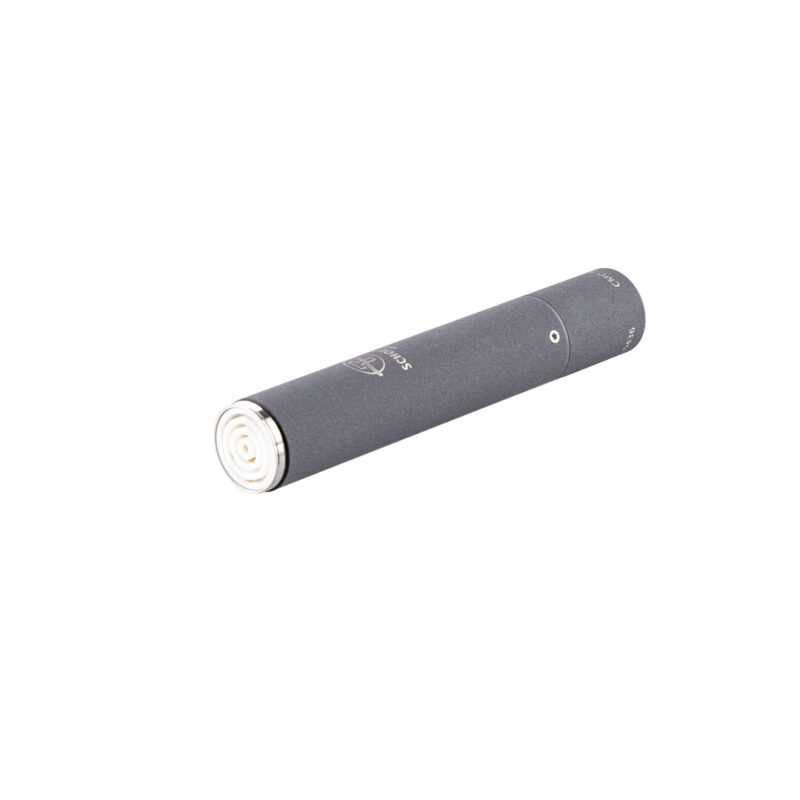

SCHOEPS CMD 42 COLETTE DIGITAL MICROPHONE AMPLIFIER

The Schoeps CMD 42 Colette Digital Microphone Amplifier transfers the signal from the microphone capsule directly into the digital domain. Like the SuperCMIT, the CMD 42 uses the AES42 interface. The download area lists a selection of current equipment that has this interface. In principle, however, a small power supply at an AES3 input may be sufficient, since the CMD 42 can be controlled via a no-cost smartphone app. The CMD 42 is not intended to replace analog microphones. Rather, it is meant for applications in which its special features offer distinct added value: Immunity to interference: The digital output resists any interference in the cable Dynamic range: No analog level-setting is required; the full dynamic range of the capsule is transferred into the digital realm High resolution: Sampling rates up to 192 kHz and extended frequency range for the microphone capsule beyond 40 kHz (“xt” functionality). The low self-noise, including in the range above 20 kHz, allows downpitching to be done with high audio quality. Unrivaled, low inherent noise in the ultrasonic range, particularly suitable for down-pitching in sound design DSP: Extensive signal processing is available directly within the microphone, including among other routines: Limiter Mono Upmix to Stereo Numerous EQ curves Remote app: Easy control setting via smartphone (acoustically, without wireless technology) Two-channel output: can deliver both a processed and an unprocessed signal simultaneously as a backup or cloned or stereo signal (through Mono-Upmix) Flexible function indicator via integrated, multicolor LED Digital microphone amplifier for the Colette series, compatible with all MK capsules and Colette accessories AES42 interface, Modes 1 and 2 Recommended for film sound and sound design Compatible with these digital wireless transmitters: Sound Devices A20-TX, Zaxcom TRX743, Zaxcom TRX745 Controllable with the free “Schoeps Remote App”: Apple App Store, Google Play Store USER MANUAL CMD 42   Frequency range 8 Hz – 96 kHz Sensitivity with MK 2: -40 dBFS at 1 Pa Equivalent noise level (A-weighted) with MK 2: 12 dB Equivalent noise level (CCIR) with MK 2: 23 dB Maximum sound pressure level (THD < 0.5 %) with MK 2: pad inactive: 134 dB-SPL pad active: 152 dB-SPL Latency period Pure Mode: 11 Samples = 0,06 ms @ 192 kHz Full Mode: 2.2 ms Peak Limiter: 1 ms Maximum cable length >200 m (with AES cable) SCHOEPS RFI Shield Yes, highest immunity Powering standard / Valid range AES42, 24 bit / 6-12 V Current consumption 120 mA at 10 V Output XLR-3M, digital: AES42 Mode 1 or 2, 2 channels Length 116 mm Weight 70 g Diameter 20 mm Surface finish matte gray Sample Rate 44.1, 48, 88.2, 96, 176.4, 192 kHz
