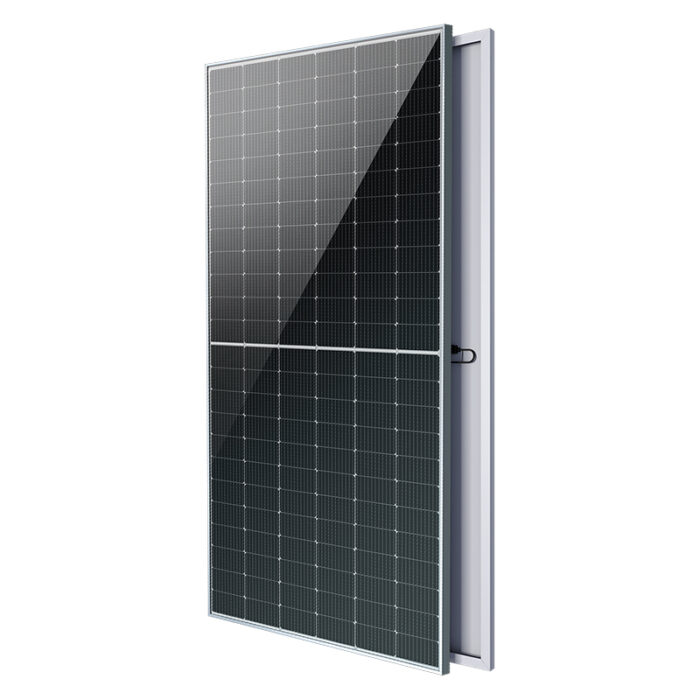

ASTRO 5 Semi – 525W~545W

DescriptionModel No.CHSM72M-HC 525CHSM72M-HC 530CHSM72M-HC 535CHSM72M-HC 540CHSM72M-HC 545Warranty Product Warranty12 YearsPower Warranty25 Years of 84.80% Output PowerElectrical Data at STC Maximum Power (Pmax)525 Wp530 Wp535 Wp540 Wp545 WpVoltage at Maximum Power (Vmpp)41.26 V41.43 V41.6 V41.76 V41.93 VCurrent at Maximum Power (Impp)12.72 A12.79 A12.86 A12.93 A13 AOpen Circuit Voltage (Voc)49.1 V49.3 V49.5 V49.7 V49.9 VShort Circuit Current (Isc)13.43 A13.52 A13.61 A13.72 A13.81 APanel Efficiency20.5 .7 .9 !.1 !.3 % Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°CElectrical Data at NOCT Maximum Power (Pmax)392.3 Wp396.1 Wp399.8 Wp403.5 Wp407.3 WpVoltage at Maximum Power (Vmpp)38.45 V38.61 V38.77 V38.92 V39.08 VCurrent at Maximum Power (Impp)10.2 A10.26 A10.31 A10.37 A10.42 AOpen Circuit Voltage (Voc)46.4 V46.59 V46.78 V46.97 V47.16 VShort Circuit Current (Isc)10.9 A10.97 A11.04 A11.13 A11.2 ATemperature45±2 °C Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°CThermal Ratings Temperature Coefficient of Pmax-0.350 %/°CTemperature Coefficient of Voc-0.270 %/°CTemperature Coefficient of Isc0.045 %/°CMaximum Ratings Maximum System Voltage1500 VSeries Fuse Rating25 AMaterial Data Panel Dimension (H/W/D) 2256x1133x35 mmWeight27.2 kgCell TypeMonocrystallineCell Number182Glass Thickness3.2 mmEncapsulant TypeEVAFrame TypeAnodized Aluminium AlloyJunction Box Diodes3Junction Box Protection ClassIP 68Connector TypeMC4Cable Crossection4 mm2Cable Length1400 mm Download PDF
