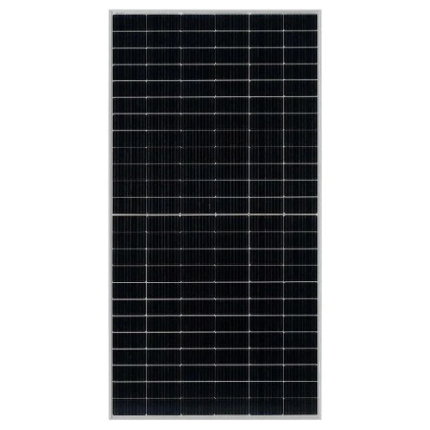

Deep Blue 3.0 JAM72S30 525-550/MR/1500V

Description Model No. JAM72S30-525/MR/1500V JAM72S30-530/MR/1500V JAM72S30-535/MR/1500V JAM72S30-540/MR/1500V JAM72S30-545/MR/1500V JAM72S30-550/MR/1500V Warranty Product Warranty 12 Years Power Warranty 15 Years of 91.7% Output Power, 30 Years of 84.95% Output Power Electrical Data at STC Maximum Power (Pmax) 525 Wp 530 Wp 535 Wp 540 Wp 545 Wp 550 Wp Voltage at Maximum Power (Vmpp) 41.15 V 41.31 V 41.47 V 41.64 V 41.8 V 41.96 V Current at Maximum Power (Impp) 12.76 A 12.83 A 12.9 A 12.97 A 13.04 A 13.11 A Open Circuit Voltage (Voc) 49.15 V 49.3 V 49.45 V 49.6 V 49.80 V 49.96 V Short Circuit Current (Isc) 13.65 A 13.72 A 13.79 A 13.86 A 13.93 A 14 A Panel Efficiency 20.3 % 20.5 % 20.7 % 20.9 % 21.1% 21.3 % Power Tolerance (Positive) 5 W 5 W 5 W 5 W 5W 5W Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C Electrical Data at NOCT Temperature 45±2 °C Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C Thermal Ratings Operating Temperature Range -40~85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum Ratings Maximum System Voltage 1500 V DC Series Fuse Rating 30 A Material Data Panel Dimension (H/W/D) 2278x1134x35 mm Weight 31.8 kg Cell Type Bifacial, PERC Cell Number 144 Glass Thickness 2 mm Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1300 mm   DOWNLOAD PDF
