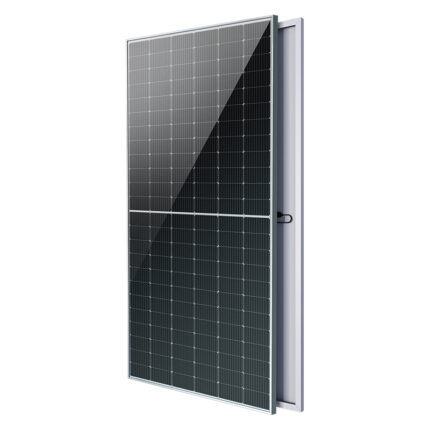

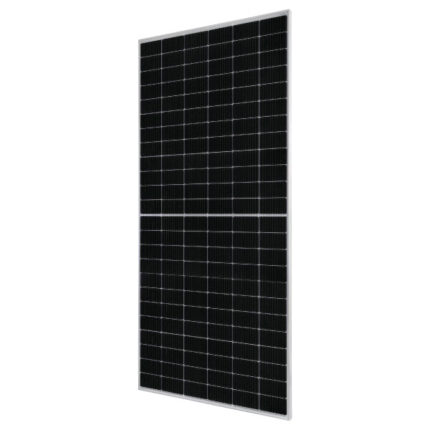

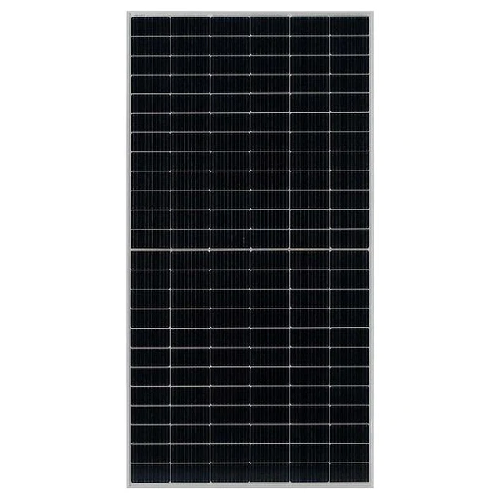

Tiger Neo N-type 72HL4-(V) 555-575 Watt

Description Model No. JKM555N-72HL4/JKM555N-72HL4-V JKM560N-72HL4/JKM560N-72HL4-V JKM565N-72HL4/JKM565N-72HL4-V JKM570N-72HL4/JKM570N-72HL4-V JKM575N-72HL4/JKM575N-72HL4-V Warranty Product Warranty 12 Years Power Warranty 30 Years of 87.4% Output Power Electrical Data at STC Maximum Power (Pmax) 555 Wp 560 Wp 565 Wp 570 Wp 575 Wp Voltage at Maximum Power (Vmpp) 41.64 V 41.77 V 41.92 V 42.07 V 42.22 V Current at Maximum Power (Impp) 13.33 A 13.41 A 13.48 A 13.55 A 13.62 A Open Circuit Voltage (Voc) 50.34 V 50.47 V 50.6 V 50.74 V 50.88 V Short Circuit Current (Isc) 14.07 A 14.15 A 14.23 A 14.31 A 14.39 A Panel Efficiency 21.48 % 21.68 % 21.87 % 22.07 % 22.26 % Power Tolerance (Positive) 3 % 3 % 3 % 3 % 3 % Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C Electrical Data at NOCT Maximum Power (Pmax) 417 Wp 421 Wp 425 Wp 429 Wp 432 Wp Voltage at Maximum Power (Vmpp) 39.12 V 39.25 V 39.38 V 39.51 V 39.6 V Current at Maximum Power (Impp) 10.67 A 10.73 A 10.79 A 10.85 A 10.92 A Open Circuit Voltage (Voc) 47.82 V 47.94 V 48.06 V 48.2 V 48.33 V Short Circuit Current (Isc) 11.36 A 11.42 A 11.49 A 11.55 A 11.62 A Temperature 45±2 °C Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C Thermal Ratings Operating Temperature Range -40~85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum Ratings Maximum System Voltage 1500 V Series Fuse Rating 25 A Material Data Panel Dimension (H/W/D) 2278x1134x35 mm Weight 28 kg Cell Type Monocrystalline Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Alloy Junction Box Protection Class IP 68 Cable Crossection 4 mm2 DOWNLOAD PDF
